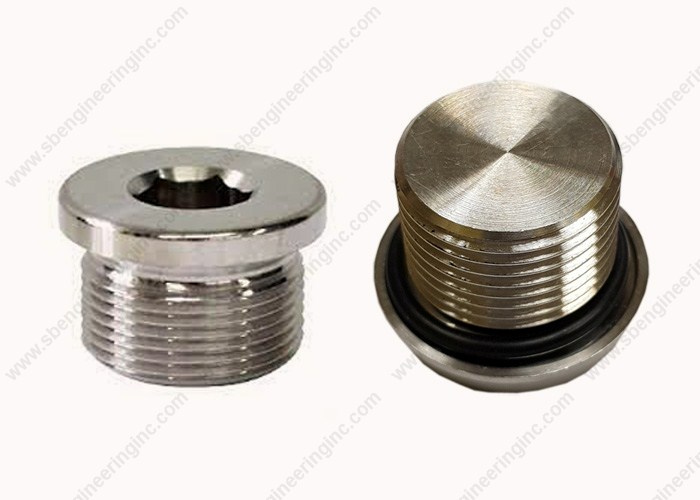

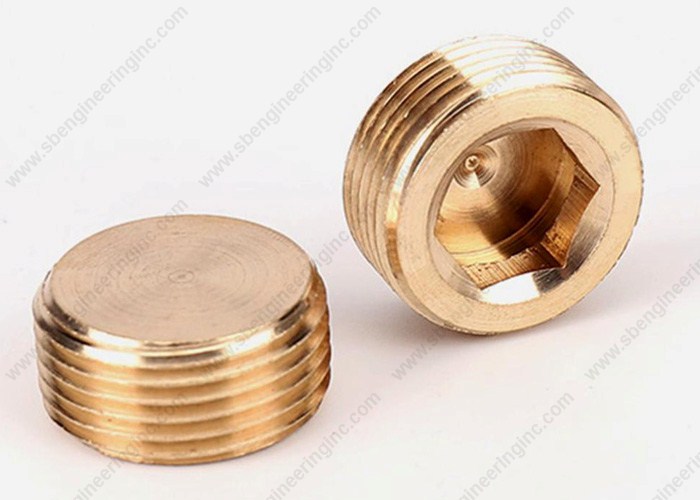

We manufacture and supply a wide range of Brass Stop Plugs. Stop Plug used to close thread entries or means of sealing & stopping unused thread entries in flame proof enclosures. Brass Stop Plugs are available in various standard sizes and technical specifications.
| Material : | » Free Cutting Brass IS (CuZn39Pb3) ISO Type (I) or » Free Cutting Brass As Per BS 249 Type (I) or » High Grade Free Cutting Brass » Any Special Brass Material Composition As per Customers Requirement |
| Threads : | » ISO metric, MM, PG, BSW, BSP, BSB, BSF, BA, NPT, NPTF, UNC, UNF, UNEF etc, » Any threads as per customer's design |
| Finish And Coating : | » Natural, Nickel Plated, Tin Plated or any coating as per customer specification |
| PG Thread | |||
| Thread | Diameter | Length | L1 |
| PG 7 | 14 | 8 | 5 |
| PG 9 | 17 | 9 | 6 |
| PG 11 | 20 | 9 | 6 |
| PG 13.5 | 22 | 9.5 | 6.5 |
| PG 16 | 24 | 9.5 | 6.5 |
| PG 21 | 30 | 11 | 7 |
| PG 29 | 39 | 12 | 8 |
| PG 36 | 50 | 15 | 9 |
| PG 42 | 57 | 16 | 10 |
| PG 48 | 64 | 16 | 10 |
| Metric Thread | |||
| Thread | Diameter | Length | L1 |
| M 12 X 1.5 | 14 | 7.5 | 5 |
| M 16 X 1.5 | 18 | 8 | 5 |
| M 20 X 1.5 | 22 | 9.5 | 6 |
| M 25 X 1.5 | 28 | 11 | 7 |
| M 32 X 1.5 | 35 | 12 | 8 |
| M 40 X 1.5 | 43 | 13 | 8 |
| M 50 X 1.5 | 53 | 15 | 9 |
| M 63 X 1.5 | 66 | 16 | 10 |
